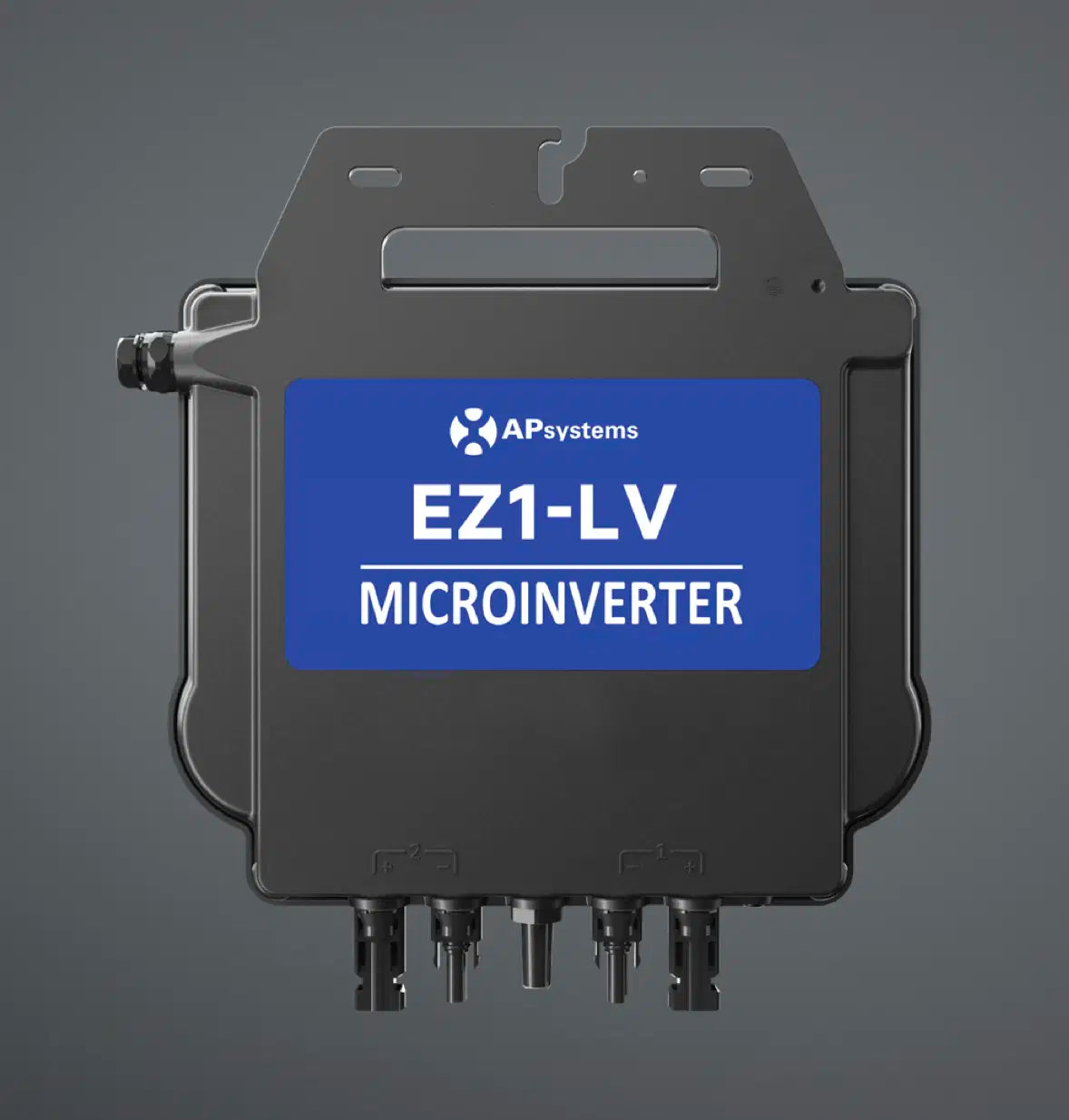

APsystems EZ1-LV Microinverter

Name: APsystems EZ1-LV Microinverter
Brand: APsystems
SKU: USPS-INV-EZ1
Price: 289.0 USD
Availability: InStock

$289.00

Already have panels? The EZ1-LV turns up to two of them into power for your home, up to 900 W, and shows what you make on your phone. Check your panels.

In stock

Needs its own circuit. APsystems rates the EZ1-LV for a dedicated circuit, not a shared wall outlet, so plan on an electrician adding one.

Free shipping anywhere in the US.

30-day returns: 10% restocking fee, return shipping paid by you.

Two panel inputsWorks with most 315-660 W panels
Up to 900 WUL 1741 certified
Needs its own circuitAn electrician adds one
12-year warrantyFrom APsystems

Run your panels through the check below first.

Rules differ by state: the laws page covers yours.

Model: APsystems EZ1-LV
Output: up to 900 W at 120 V
Panels: two inputs, 315-660 W panels recommended; 27-45 V, 60 V max per input
Connectors: MC4 on the panel side, a standard plug on the cord
App: Wi-Fi and Bluetooth, APsystems' AP EasyPower app
Weatherproof, -40 to 65 °C; 11.1 × 9.2 × 1.6 in, 9.3 lb
Safety: UL 1741 certified
In the box: the inverter and its power cord

12-year warranty from APsystems.

Will my panels work with it?

Copy four numbers from your panel's datasheet or the label on its back. The check tries one panel, two in series and two in parallel on an input, on a cold morning and a hot afternoon.

Identical panels only. Mixed panels on one input aren't covered.
Over a voltage or short-circuit maximum: don't connect that wiring.
Close to a maximum: check with the panel maker before you connect.

No panels yet? The kits come matched: 200 W, $399 or 400 W, $599.

Panel compatibility checkFrom the makers' datasheets

Inverter Rated power, Pmax (W) Open-circuit voltage, Voc (V) Max-power voltage, Vmp (V) Short-circuit current, Isc (A)Bifacial: use the maker's highest Isc. The panel's leads end in MC4 connectors

Temperatures and coefficients

Coldest morning (°C)Use your area's record low if it's colder. Hot panel (°C)Cell temperature on a hot sunny day. 65 suits a panel with air behind it, like on a railing; use about 75 for one lying flat on a roof or glued down. Voc temperature coefficient (%/°C)From the datasheet; usually -0.25 to -0.35. Vmp temperature coefficient (%/°C)If only a Pmax coefficient is listed, take about 0.05 off it: -0.35 becomes -0.40.

Enter Pmax, Voc, Vmp and Isc to run the check.

Approval from your board or landlord

The Approval Pack: an HOA request letter, a landlord letter, a state-by-state law sheet and a model board policy. Fill in, send, get a decision.

Get the approval pack · $29Instant download · 30-day refund, any reason
